95% New Fujikura FSM-90R Ribbon Fusion Splice Mass Welding Splicer with RS03 Thermal Stripper Very Low Arc Count 368

Mass Fusion Technology: The 90R mass fusion splicer has a wide heating area for up to 12 fibers. The wide electrode gap melts the fibers uniformly and has real-time arc discharge control by analyzing the arc’s brightness intensity. The 90R does not have active core alignment mechanisms, however, during the discharge, fiber surface tension effects minimize preexisting offsets. Advanced Innovation: Replaceable V groove - Analyzing arc power by observing the brightness intensity. The 90R mass fusion splicer include sa spare set of 12 fiber V-grooves with electrodes installed and ready to splice as part of the standard package. These spare V-grooves are field replaceable, so your downtime is minimized.

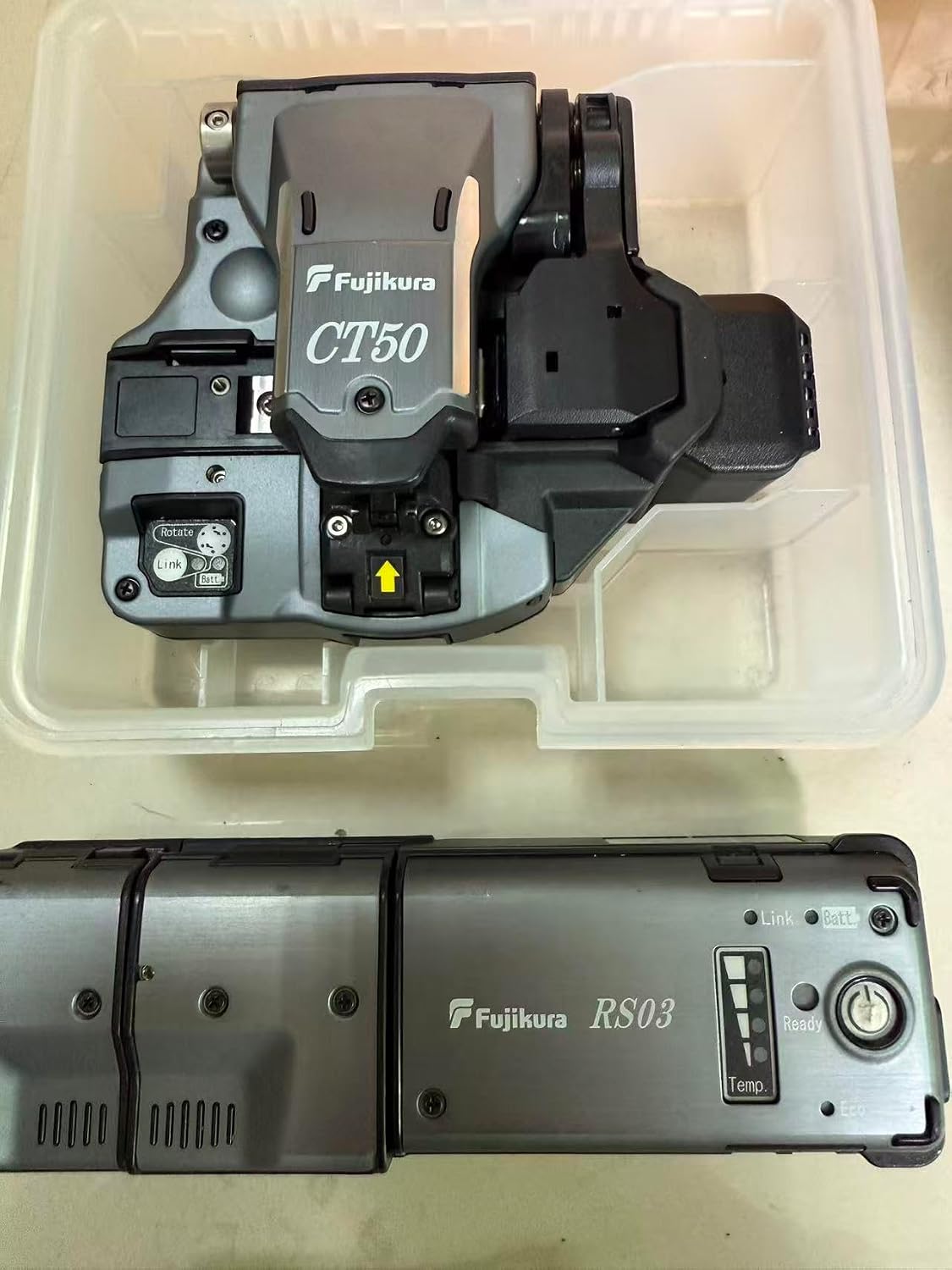

• Package Accessories: 1,Mass fusion splicer 90R 2,Fiber Cleaver CT50 3, Ribbon Fiber Stripper RS-03 4, Battery Pcak BTR-15 5, AC Adapter ADC-20 6, AC Power Cord ACC-14 7, USB Cable USB-01 8, Fusion Splicer Strap ST-02 9,12 Fiber-Groove VG12-01 10, Hexagonal Wrench HEX-01 11, V-groove Cleaning Brush VCB-01 12, Carrying Case CC-39 13, Work Tray Left WT-09L 14, Work Tray Right WT-09R 15, Tripod Screw TS-03
• Very Low Arc Count 1041 Excellent Working Condition
• 1. Universal Fiber Holder: The FH-70-12 fiber holder is compatible with many types of 12 fiber ribbon, such as 0.3mm or 0.4mm thick encapsulated ribbons and 200μm or 250μm coated Spider Web Ribbon (SWR). The 250 µm pitch V-groovesin the FH-70-12 fiber holder simplify SWR loading and ribbon preparation.
• Pitch Conversion Fiber Holder: The pitch conversion fiber holder, FH-70-12PC, enables pitch conversion of individual 200µm coated fibers from a 200µm to 250µm pitch. The pitch converted 200µm fibers can now be loaded in the 88R12 mass fusion splicer.
• Universal Ribbon Stripper: 200µm V-groove Surface 250µm V-groove Surface The RS series ribbon strippers are compatible with 200µm to 400µm coated fibers with out replacing the stripper blades. Universal Tube Heater: The 88R12 mass fusion splicer can accommodate heat sleeve. As a result, it supports a wide range of protection sleeve sizes.
